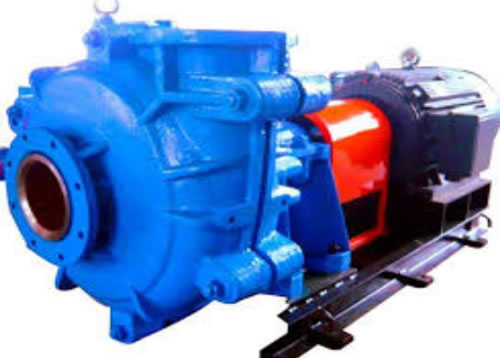

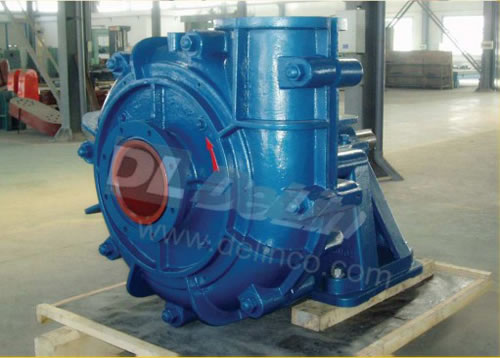

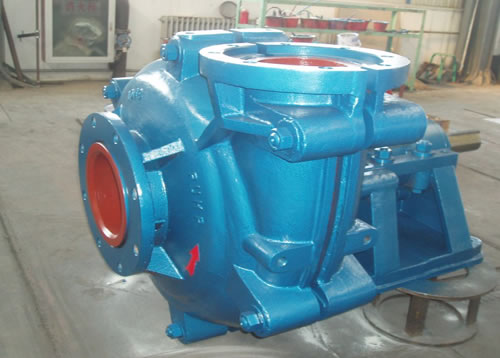

DM(R) Series Slurry Pump

DM(R) Series Slurry Pump
Russian Russian English English Spanish Spanish French French Arabic Arabic Portuguese Portuguese

Description

Diameter: 25-650mm
Capacity: 2-9500m3/h
Head: 10-55m (Single-stage)

DELIN MACHINERY

Double casing construction. It is featured with high efficiency, wear-resistance,stable performance and excellent interchangeability.The material of liner and impeller adopts wear-resistant metal or rubber, discharge branch can be positioned at 8 different positions at intervals of 45 degrees, the pumps may be installed in multistage design, may be driven by belt or direct coupling.The seal of shaft may be adoptable of gland seal, expeller seal or mechanical seal. Pump should rotate clockwise viewing from driving end.

Application of Horizontal Pump

Delin DM(R) series slurry pumps are suitable for delivering abrasive middle and low density slurries in metallurgical, mining, coal and power industries, etc. For example, slurry delivering in mining, metallurgical, power plant, steel mill and chemical industries, etc.


Features of Horizontal Pump

1. DM(R) series slurry pump is designed with double casing.
2. High efficiency, wear-resistance, stable performance and total interchangeability are main features of this series horizontal pump.
3. The material of liner and impeller adopts wear-resistant metal or rubber for our horizontal pump.
4. Discharge branch can be positioned at 8 different positions at intervals of 45°.
5. Similar to our other series horizontal pump, DM(R) series slurry pump can also be installed in multistage design, and driven by belt or direct coupling.
6. The seal of shaft can adopt gland seal, expeller seal or mechanical seal.
7. The pump should rotate clockwise viewing from driving end.

Selection Chart

DELIN MACHINERY

Performatic patameter

Parameter

Type Allowable Mating Max. Power(kW) Material Clear Water Performance Impeller
Liner Impeller Capacity(Q) Head(H) Speed(n) Max. Eff. NPSH No. of Vanes Impeller Dia.(mm)
(m³/h) (l/s) (m) (r/min) (%) (m)
25X20DM-A 7.5 M M 2.34~10.8 0.65~3 6~37 1400~3000 30 — 4 152.4
75X50DM-B 15 M M 16.2~76 4.5~20 9~44 1400~2800 55 — 4 190
100X75DM-C 30 M M 18~151 5~42 4~45 900~2400 57 — 4 229
150X100DM-D 60 M M 50~252 14~70 7~46 800~1800 60 2~3.5 4 305
200X150DM-E 120 M M 115~486 32~135 12~51.5 800~1500 65 2~6 4 381
250X200DM-E 120 M M 234~910 65~253 9.5~40 600~1100 64 3~6 4 457
300X250DM-S 120 M M 396~1425 110~396 8~30 500~800 77 2~10 5 550
350X300DM-S 560 M M 468~2538 130~705 8~60 400~950 79 2~10 5 653
400X350DM-S 560 M M 650~2800 180~780 10~59 400~840 81 3~10 5 735
450X400DM(R)-ST 560 M M 720~3312 200~920 7~51 300~700 80 2~10 5 825
M M 756~3312 210~920 7~37.5 6300~600 85 2~8
500X450DM(R)-ST 560 M M 1008~4356 280~1210 9~48 300~600 80 2~9 5 933
RU RU 1080~4356 300~1210 9~40 300~550 87 3~10
650X550DM(R)-TU 1200 M M 1980~7920 560~2200 10~50 250~475 86 4~10 5 1213
RU RU 1980~7920 700~2530 10~50 250~475 86 4~10

Note:

1. M: wear-resistant alloy material, RU: rubber.
2. Capacity range recommend: 50%Q'≤Q~110%Q' (Q'≈ appropriate to capacity at highest efficiency point).
3. NPSH: appropriate to point Q recommend at highest speed.

Installation Dimension

DELIN MACHINERY DELIN MACHINERY
Model Outline Dimension
A B C D E F G n-d H J K L M N
25X20DM-A 461 159 241 286 25 210 28 4-Ф18 57 20 145 89 90 86
75X50DM-B 642 143 254 295 24 248 38 4-Ф14 80 28 197 191 136 114
100X75DM-C 813 175 358 406 32 311 48 4-Ф19 120 42 254 253 163 146
150X100DM-D 950 213 432 492 38 364 64 4-Ф22 163 65 330 280 187 190
200X150DM-E 1218 257 546 622 54 448 76 4-Ф29 220 80 457 376 237 248
250X200DM-E 1334 257 546 622 54 448 76 4-Ф29 220 80 457 413 306 292
300X250DM-S 1406 490 560 680 50 590 70 4-Ф28 216 85 350 322 324 438
350X300DM-S 1720 640 760 920 70 780 90 4-Ф35 280 120 450 415 300 475
400X350DM-S 1776 640 760 920 70 780 90 4-Ф35 280 120 650 425 340 530
450X400DM(R)-ST 1840 620 900 1150 80 780 125 4-Ф48 280 120 650 480 375 600
500X450DM(R)-ST 1875 620 900 1150 80 780 125 4-Ф48 280 120 650 500 400 660
650X550DM(R)-TU 2400 860 1200 1460 95 1050 150 4-Ф79 350 150 900 625 500 860
Model Pump Head Size Inlet Flange Dimension Outlet Flange Dimension
S Q R P O.D I.D C-C BET. Holes Holes O.D I.D C-C BET. Holes Holes
25X20DM-A 144 - - 128 114 25 83 4-Ф14 102 20 73 4-Ф14
75X50DM-B - 155 - 163 184 75 146 4-Ф19 165 50 127 4-Ф19
100X75DM-C 102 - - 204 229 100 191 4-Ф19 203 75 165 4-Ф19
150X100DM-D 118 - - 262 305 150 260 4-Ф22 229 100 191 4-Ф22
200X150DM-E 155 - - 324 368 200 324 4-Ф19 305 150 260 4-Ф19
250X200DM-E 199 - - 401 445 250 394 8-Ф22 382 200 337 8-Ф22
300X250DM-S 257 476 603 470 552 305 495 8-Ф32 483 254 425 8-Ф22
350X300DM-S 165 599 634 570 560 350 500 12-Ф26 530 300 470 12-Ф26
400X350DM-S 295 643 691 620 640 400 580 12-Ф26 590 350 530 12-Ф26
450X400DM(R)-ST 343 747 809 740 720 450 650 12-Ф33 685 400 615 12-Ф33
500X450DM(R)-ST 375 814 872 800 770 500 700 12-Ф33 740 450 670 12-Ф33
650X550DM(R)-TU 453 1055 1142 975 975 650 880 12-Ф39 900 350 800 12-Ф39
