We are one of the leading manufacturers of various slurry pumps in China, including vertical cantilever sump slurry pump and other centrifugal sludge pumps. Casing halves are cast iron fitted with replaceable, abrasion resistant rubber liners, which are pressure molded to steel backing plates and secured to casing externally by heavy-duty studs and nuts. Rubber closed impeller is pressure molded to ductile iron skeleton and includes pump-out vanes on front and rear shroud to reduce stuffing box pressure and suction recirculation.
Application of Vertical Cantilever Sump Slurry Pump
Vertical cantilever sump slurry pumps are used widely throughout the beneficiation section of the mining industry. These sludge pumps are also widely used for the disposal of ash from power plants, the manufacture of fertilizers, and the long distance transportation of coal and minerals.
Advantages of Vertical Cantilever Sump Slurry Pump
1. Vertical cantilever slurry pump casing carries replaceable wear-resistant metal or rubber liners. The impellers are made of wear-resistant metal or rubber.
2. Bearing assembly is adoptable of cylindrical structure. It is easy to adjust the gap between impeller and front liner. It can be removed completely for repairing. Bearing assembly uses grease lubrication.
3. The shaft seal could use the packing seal, expeller seal and mechanical seal.
4. The sludge pump discharges direction can be positioned at intervals of 45 degrees as requested and oriented to any eight positions to suit installations and applications.
Features of Vertical Cantilever Sump Slurry Pump
1. Interchangeability of parts among R pump and M pump
2. This sludge pump adopts concentric casing design
3. Directly coupled or V-belt driven
4. Acid resistant stuffing box kits
6. Choice of liner materials (Natural Rubber, Neoprene, Chlorobutyl, Urethane, Ceramic)

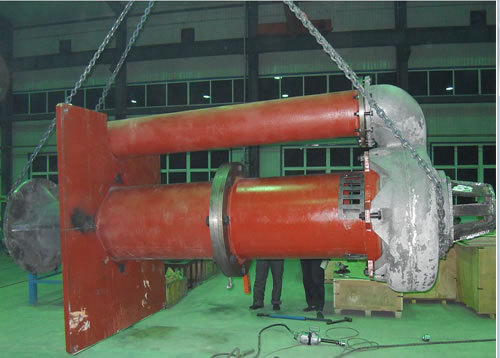

Typical one
Specifications of Vertical Sludge Pump 40(L) DV
1 Maximum power applicable to vertical cantilever sump slurry pump is 15KW
2 Impeller and sleeve adopt metal alloy material with wear protection.
3 Flow Rate: 19-43m³/h
4 Head: 4.5-28.5m
5 Rotation Speed: 1000-2200 r/min
6 Maximum Performance: 40%
7 Impeller's diameter is 188mm
