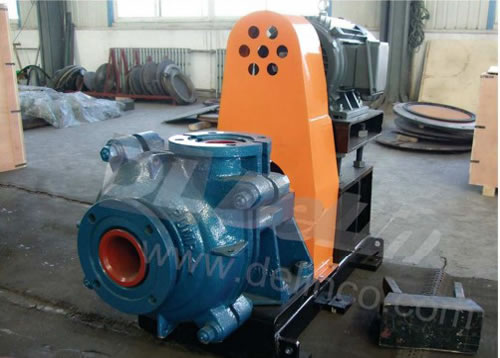

Heavy Duty Slurry Pump

Delin Machinery is one of the largest horizontal slurry pump manufacturers in China. Heavy duty slurry pump is of horizontal and cantilever design. The shaft can be sealed by gland seals or centrifugal seals. This series of heavy duty slurry pump is built to withstand the toughest conditions, while maintaining maximum reliability and utmost ease of operation and maintenance. Application of Heavy Duty Slurry Pump Heavy duty slurry pumps are suitable for transporting slurries with high erosion and high density in industrial sectors of mining, coal, power generation and building materials.

Features of Heavy Duty Slurry Pump

1. Double casing design.
2. High efficiency, wear-resistance, and great changeability.
3. For the materials of liner and impeller, the heavy duty slurry pump can adopt metal or rubber.
4. Discharge branch can be positioned at 8 different positions at intervals of 45°.
5. Ability to upgrade with more stages.
6. The driving force for the heavy duty slurry pump can be DC (direct connection) or V-belt drive.
7. The pump may adopt gland seal, expeller seal or mechanical seal.
8. The pump should rotate clockwise seeing from the driving end.

Specifications of Heavy Duty Slurry Pump 150X100DH(R)-D:

1. Maximum power allowable is 60KW.
2. Impeller and plate liner can adopt changeable rubber and metal materials.
3. Performance: according to different materials of impeller and volute liner, pump flow rate can be divided into 162-360 m³/h and 144-324 m³/h; Delivery head can be 12-56m and 12-45m, rotating speed can be 800-1550 r/min and 800-1350 r/min, the maximum efficiency can achieve 65%, and net positive suction head can be 5-8m and 3-5m.
4. 5 impellers; the diameter is 365mm.
