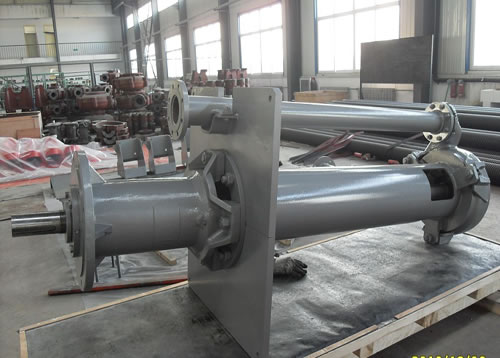

Structure: Mining sump slurry pump is a cantilever design of single stage and single suction, with the bearing housing, fulcrum bearing, and intermediate pipe connecting the hydraulic parts of the pump.
Components and Operation: The water is discharged out from the drain pipe parts, and pump impeller is of semi-open design. There is no mixing impeller at the extension area of the inlet. The impeller is made of wear-resistant metal, rubber, or polyurethane materials, maximizing its service life.
This is centrifugal type of slurry pump, operating under water, widely used for transporting abrasive, viscous and large-sized particle slurry. It does not need shaft seal and seal water, easy handling. The shaft seal runs into the underwater pump without setting up the shaft seal, drive should be installed the vertical motor on the supporting seat connecting with coupling and pump.
Application of Mining Sump Slurry Pump
Our mining sump slurry pump can be widely used in oil drilling, municipal engineering, thermal power plant, coal gas coking plant, oil refineries, steel mill, mining, paper making, cement plant, food factory, printing and dyeing industry, heavy oil, diesel and dreggy liquid, mud, mortar, flow and urban drainage channel way of sand flow sludge.
Advantages of Mining Sump Slurry Pump
The wet ends (volute liners, liner inserts, impellers) for under liquid slurry pump are replaceable; wear-resistant internal rubber linings are with the features of long service life, high efficiency and energy saving. Our Company can also provide you with wet parts made of wear-resistant metal according to your requirements, and these metal wet ends and rubber ones have a good interchangeability.
Features
The main feature of this mining sump slurry pump is its bearing with high rigidity. There is no shaft between pump casing and impeller, no shaft seal, suitable for transporting the greater medium of solid particles.
Typical one
Specification of Mining Sump Slurry Pump 65(L) DVR
1 The Maximum Power Allowable: 30 KW
2 The sleeve and impeller is made of rubber material
3 The Flow Rate: 23-105 m³/h
4 Discharge Head: 5.5-30.5m
5 Rotation Speed: 500-1200 r/min
6 The Maximum Efficiency: 51%
7 Five impellers and the diameter is 280mm
